Continuous Induction Sealing Machine- Employs the principles of electromagnetic induction

Introduction – Continuous Induction Sealing Machine

Continuous Induction Sealing Machine: The YF series continuous induction sealer utilizes electro-magnetic induction principle to provide instant excessive warmness to soften aluminium foil. Then it adheres to the bung hole, achieving the purpose of moist-proof, leakage-proof, mold-evidence and increasing preservation time. Continuous Induction Sealing Machine, Now it’s far extensively used as sealing package deal machine in industries including prescribed drugs, pesticides, insecticides, lubricant and cosmetics and many others.

About this object (Continuous Induction Sealing Machine)

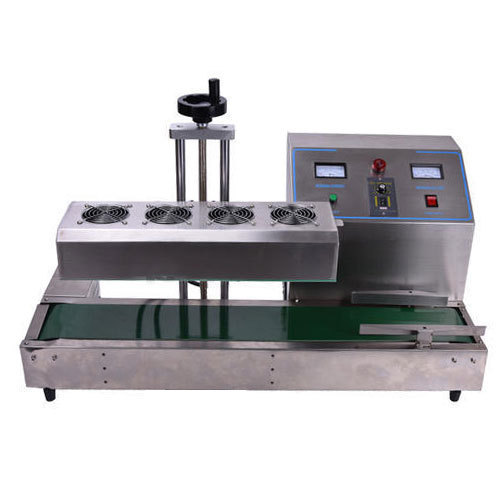

LGYF-2000BX-1 continuous induction sealer is extensively used as sealing bundle system in industries which include meals, lubricant and cosmetics and so on. and used for big, medium batch non-stop sealing work. Aluminium foil is sealed mechanically while bottle is transmitted thru beneath induction coil with the aid of conveyor.

Use Electromagnetic Induction era, this continuous sealer gadget equipped with included circuit and circuit protection tool, which makes it paintings stably and safe to apply.

Continuous Induction Sealing Machine, Sealed Firmly and robotically, aluminium foil is sealed routinely whilst bottle is transmitted via below induction coil with the aid of conveyor, sealed securely at the bottle, would now not leak.

LGYF-2000 version for bunghole sealing with foil or plastic foam liners sizes 20mm to 130mm extensive( five inches max cap liner length width), bottle height up to 15.seventy four” inches or 400mm, can seal an expansion of bottles.

high correctly Sealing machine, 0-12m/min, automated continuous operation can growth the sealing successfully, shop sources and make certain the process correct, make it smooth to use even for a fresh hand.

Additional Info

Continuous Induction Sealing Machine, Seal an aluminium laminated liner to the top of plastic boxes with this LGYF-2000AX-II table-fashion non-stop Induction Sealer. This sealer is appropriate for packing containers such as plastic bottles, ABS, PE (HDPE, LDPE), pet, PP, ps, or p.c. The LGYF-2000AX-II has a sealing diameter among 1.96″ to five.12″, and might accommodate 1.fifty seven”-eleven.eight” high bottles. Create tamper proof product and guard product from outdoor factors with this LGYF-2000AX-II desk-fashion continuous Induction Sealer.

Product information (Continuous Induction Sealing Machine)

Smooth to function – minimal operator schooling.

Speedy heat up time

Forced air cooling system

Stainless steel

Adjustable velocity on conveyor (as much as 393 inches/minute)

Create Tamper evidence Product.

Defend Product from outdoor factors.

Make bigger Product shelf lifestyles.

Seals product aroma

No product leakage.

Create an expert looking package deal.

Item specifications

Voltage: 220V/50Hz

Amps: <10A

Energy: =1500W

Operating Frequency: seventy five-85KHz

Potential: 3-10m/min (393 inches/min)

Sealing Diameter: 50-130mm (1.96″ – five.12″)

Suitable height of Bottles: 40-300mm (1.fifty seven” – eleven.eight”)

Conveyor Bearing Load: <20Kg (44-lbs)

Dimensions: forty four” x 24″ x sixteen”

Weight: 12LBS

Continuous Induction Sealing Machine, The Y-fang institution become mounted in 1985 and contains the latest jap packaging technology in the design of our cutting-edge top notch Sealer machines.

We specialize inside the layout and manufacture of sealing machines for diverse business programs. With over 30 years of producing revel in, we are able to produce an extensive variety of tray sealing machines with a capacity of 450 to six hundred portions according to hour. Continuous Induction Sealing Machine, Our machines can perform a spread of different features which includes automobile-dropping, piston filling, date printing, vacuuming, and gas flushing (MAP: modified environment Packaging). moreover we also are capable of offer our clients with “OEM, ODM, and OBM “production solutions. Our products had been exported to nations over the world, together with Europe, Asia, Africa, and the America’s.

Continuous Induction Sealing Machine, The DGYF collection portable induction sealing system makes use of electro magnetic induction precept to supply on the spot excessive heat to melt aluminium foil. Then it adheres to the bung hollow, achieving the goal of wet-proof, leakage-evidence, mold-evidence and extending maintenance time. Now it’s miles broadly used as sealing package deal device in industries which include prescribed drugs, pesticides, pesticides, lubricant and cosmetics and so forth.

The LGYF-2000 non-stop induction sealer makes use of electro-magnetic induction principle to produce on the spot high heat to melt aluminium foil to seal bottles. via sealing the bung hollow you may reap many stuff which include preventing leaks, decreasing spoilage, stopping tampering, and lengthening preservation time. Now it is widely used as sealing package deal machine in industries such as prescribed drugs, pesticides, lubricants and cosmetics etc.

Parameters (Continuous Induction Sealing Machine)

Printing kind: LGYF-2000

power: 1800w 50/60Hz

electricity supply:220V

potential: 0-12M/min

Sealing Diameter 50-130mm

suitable top of bottles 50-330mm

machine weight 45Kg(99Lb)

gadget length: 1150*560*480mm(45.2″ * 22″ * 18.8″)

Induction Sealing: what’s It?

The induction sealing system bonds a foil laminate internal seal to the lip of a box. After the field has been filled and capped with an induction-lined closure, it passes underneath the induction sealing system. Continuous Induction Sealing Machine, The non-contact heating procedure welds the lining to the container growing a hermetic seal. The FDA regards induction sealing to be an powerful method of tamper evidence.

Why select Induction Sealing?

Whilst nicely carried out, induction covered caps provide a hermetic, leak evidence, and tamper obtrusive seal. Continuous Induction Sealing Machine, using an induction sealing gadget is right for extending product shelf life, retaining freshness, stopping high-priced leaks and enhancing your product’s cost.

How Induction Sealing Works?

An induction sealing machine functions two trendy additives: the electricity supply and sealing head. The sealing head consists of a coiled conductor covered through plastic housing. whilst the energy supply energizes the inductive coil, it produces an electro-magnetic present day, referred to as an eddy contemporary. Continuous Induction Sealing Machine, while a container fitted with an induction lined cap passes through this current, the foil from the inner-seal is heated. This melts the foil’s outer polymer coating, which forms a bond with the lip of the container.

Product Features (Continuous Induction Sealing Machine)

LGYF-2000 continuous induction sealer is widely used it is for the pharmaceutical, meals, cosmetics, shoes and other industry plastic bottles, glass bottles and different non-metal bottle of aluminium foil. Aluminium foil is sealed robotically when bottle is transmitted thru underneath induction coil via conveyor.

LGYF-2000 model for bunghole sealing with foil or plastic foam liners sizes 50mm to 130mm extensive( 5 inches max cap liner length width), bottle peak as much as 13″ inches or 330mm, can seal a spread of bottles.

Firmly and routinely sealing , aluminium foil is sealed routinely while bottle is transmitted through beneath induction coil by way of conveyor, sealed securely at the bottle, might now not leak.

Continuous Induction Sealing Machine, The LGYF-1500A-I non-stop induction sealer makes use of electro-magnetic induction precept to provide immediate high heat to melt aluminum foil to seal bottles.prepared with incorporated circuits and circuit safety devices, so that its paintings is solid without any chance.

Excessive correctly Sealing gadget, zero-12m/min, computerized continuous operation can growth the sealing efficiently

Packaging: Bottles

Automatic Grade: manual

Packaging fabric: Aluminum Foil

Application: Cosmetics, pores and skin Care merchandise

Utilization: Outpacking, internal Packing

Type: Sealing system

Specification

model   LGYF-2000-BX

voltage 220V 50/60HZ

energy  1.5KW

potential 0 -12m /min

Sealing Diameter  20 -130mm

suitable top of bottles  40 -400mm

system weight  72kg

machine length   1550x550x 1350mm
